Local Settings Tab









Local Settings Tab

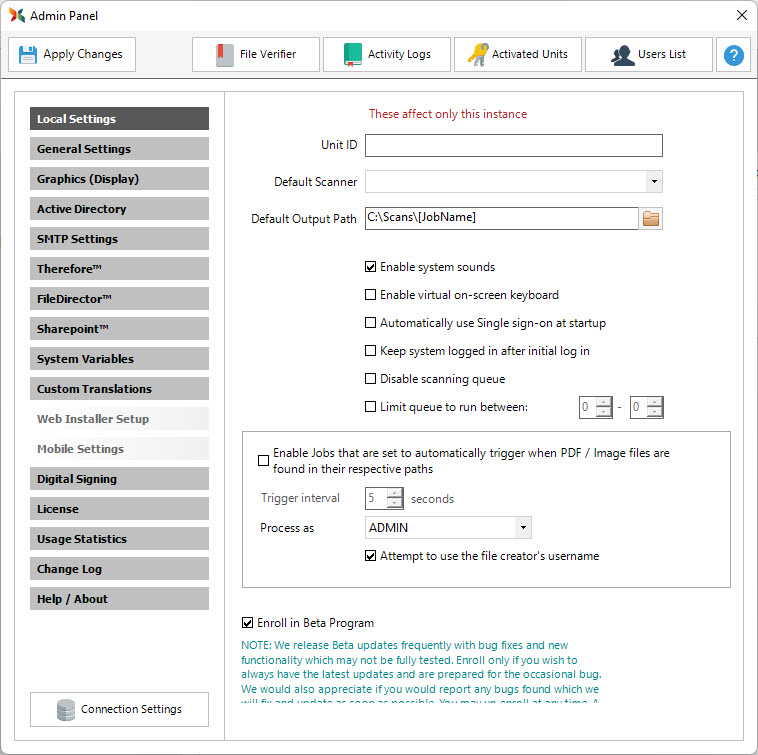

The Local Settings Tab allows for the setting of the following features:







Unit ID

This is a name given to this Scan2x workstation only. Other Scan2xs on the same network can be set with different names to differentiate between them.

(Not used when configuring web, ScanFront 400 and MFD environments)





     Default Scanner

Scan2x can be set to default to a particular scanner if the machine is connected. If the scanner type selected here is not connected, this function will have no effect.

(Not used when configuring web, ScanFront 400 and MFD environments)



   Default Output Path

The UNC path set here will be used for all jobs in which the “Scan to Default Path” output option is selected.

(Please note that this option should not be used by Scan2x Online tenants due to when saving in Scan2x Online, it does not have access to the users' local directories)





Enable System Sounds

Unticking this checkbox disables the system sounds that Scan2x uses by default to indicate a user action. Examples of system sounds include “button press” sounds made when a user types in their PIN number upon login.

(Not used when configuring web, ScanFront 400 and MFD environments)



Enable virtual on-screen keyboard

Enables or disables the on-screen keyboard for touchscreen devices working in kiosk mode.

(Not used when configuring web, ScanFront 400 and MFD environments)







Automatically use Single sign-on at startup

This feature allows Scan2x to make use of the login identity of the Windows PC on which Scan2x is currently running, allowing a user to access Scan2x without having to use a PIN. This function will also work when the PC is not joined to an Active Directory network.  If the Windows user does not exist in the Scan2x user directory it will be created automatically.

(Not used when configuring web, ScanFront 400 and MFD environments)

Keep systems logged in after initial log in

This switch disables the auto-logout countdown



Disable scanning queue

It is possible to configure Scan2x to attempt immediate delivery of output during the scanning process. This will bypass the queue functionality completely.



Limit queue to run between

This setting allows for the disabling of the Scan2x transmission queue during peak network usage times. Pending jobs in the queue will be held until peak times are over and then transmitted to their destination.

Process as:

This setting gives the option to set which username is used for processing automatically imported files.

The "Attempt to use the file creator's username" checkbox means that the Scan2x system will try to identify the creator of the file in the folder that the system is monitoring. When the file is saved to the output destination, the file will be saved using the name and permission of the creator if the attempt was successful.

Enroll in Beta Program

Click this option to enroll in our optional Beta Program, in which you get prior experience of upcoming features.

Webserver URL

USED ONLY FOR ON-PREMISE INSTALLATIONS OF SCAN2X:   Use this box to enter the URL of the Scan2x webserver.

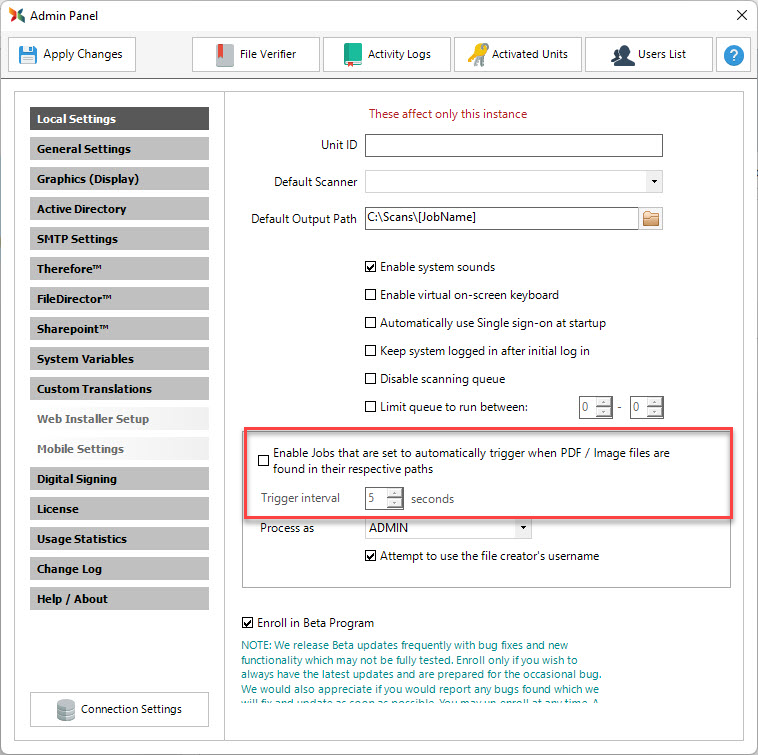

The options in the red box on the screenshot below are only available for the Workload Server option of the Scan2x system. These enable folder watching and control the polling time Scan2x uses on each folder. (Not used when configuring web, ScanFront 400 and MFD environments)
